CBS S/T B ELBA (Stationary with Belt Conveyor)

Customers value the higher hourly output of belt-fed plants. The fitted pre-hopper enables an output of 114 m³/h to 161 m³/h for standard concrete. Single-shaft or twin-shaft mixers with volumes of 2.0 m³ to 3.33 m³ of compacted concrete per batch are available. A variety of scales is also offered. Aggregates, weighed in the linear cassette, are dosed by belt conveyor, placed in the pre-hopper and discharged directly into the mixer.

← Back Request a Quote

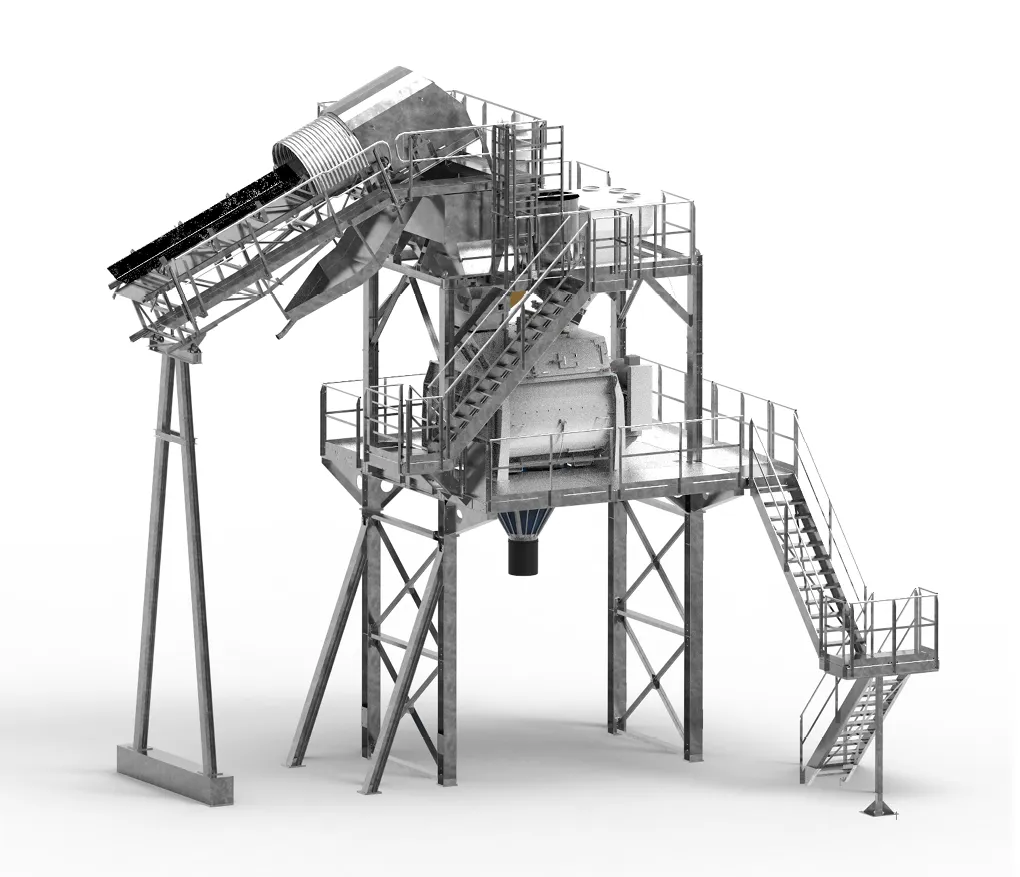

CBS S/T B ELBA – concrete plant with belt charging

Key features

High production rate thanks to belt feeding system
Generously dimensioned mixing platform
Dust extraction system (option)
Partially galvanised (standard)
Adapted for additives and special products (option)
Foundation-free installation on steel frames (option)
Winter cladding for the mixer tower (option)
Fast installation through pre-assembled modules

Technical specifications

Type	Max. concrete output [m³/h]	Mixer volume [l]	Active aggregate stockpile [m³]	Max. components	Max. cement types
CBS 105 SB	114	2000	105–312	3–12	6
CBS 105 TB	114	2000	105–312	3–12	6
CBS 110 SB	120	2250	105–312	3–12	6
CBS 110 TB	120	2250	105–312	3–12	6
CBS 120 SB	128	2500	105–312	3–12	6
CBS 120 TB	128	2500	105–312	3–12	6
CBS 130 TB	152	3000	105–312	3–12	6
CBS 140 TB	158	3333	140–312	4–12	6
CBS 150 TB	161	3500	140–312	4–12	6
