CBS S/T L ELBA (Stationary with Skip Hoist)

A premium stationary plant with a modern design and numerous options. The plants are designed for fast and cost-effective transport. Pre-installed modules accelerate erection times. The linear plant has a skip hoist (L-version) and a small footprint, yet offers high efficiency with a capacity of 105 m³/h to 140 m³/h. Single-shaft or twin-shaft mixers with volumes of 2.0 m³ to 3.33 m³ of compacted concrete per batch are available. Galvanised components minimise corrosion, and the plants are designed for ease of maintenance.

← Back Request a Quote

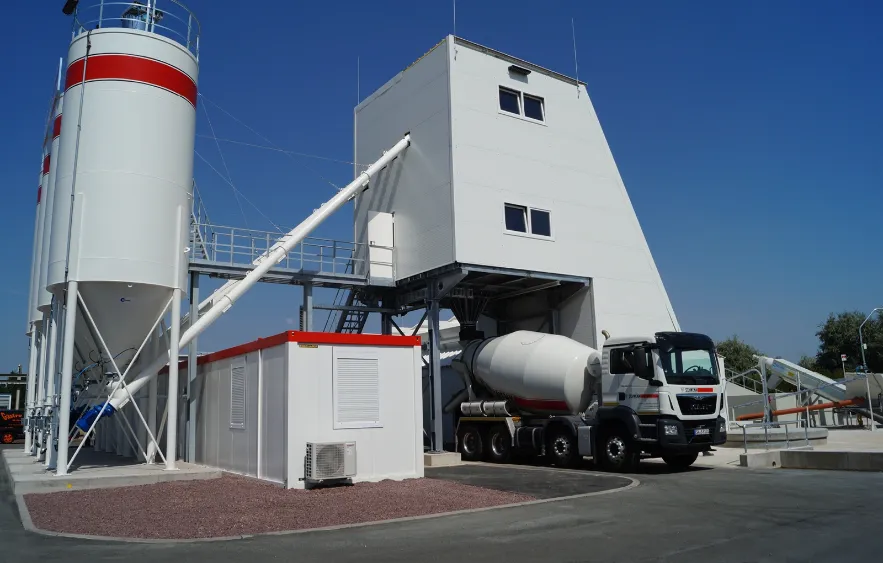

CBS S/T L ELBA – stationary concrete plant with skip hoist

Key features

Generously dimensioned mixing platform
Installation at ±0 level – no charging pit required
Dust extraction system (option)
Partially galvanised (standard)
Adapted for additives and special products (option)
Foundation-free installation on steel frames (option)
Winter cladding for the mixer tower (option)

Technical specifications

Type	Max. concrete output [m³/h]	Mixer volume [l]	Active aggregate stockpile [m³]	Max. components	Max. cement types
CBS 105 SL	107	2000	105–312	3–12	6
CBS 105 TL	107	2000	105–312	3–12	6
CBS 110 SL	114	2250	105–312	3–12	6
CBS 110 TL	114	2250	105–312	3–12	6
CBS 120 SL	121	2500	105–312	3–12	6
CBS 120 TL	121	2500	105–312	3–12	6
CBS 130 TL	130	3000	105–312	3–12	6
CBS 140 TL	138	3333	140–312	4–12	6
