CBS TB ELBA (Stationary with Twin-Shaft Mixer)

These plants are designed for large construction sites that require high output. The plant can produce up to 190 m³/h of standard concrete per hour. Twin-shaft mixers of 4.0 m³ and 4.5 m³ are available. Aggregates, weighed in the linear cassette, are dosed by belt conveyor, placed in the pre-hopper and discharged directly into the mixer. A variety of scales is also offered. The basic version of the plant can be installed on a concrete foundation. An optional version can be erected without a foundation.

← Back Request a Quote

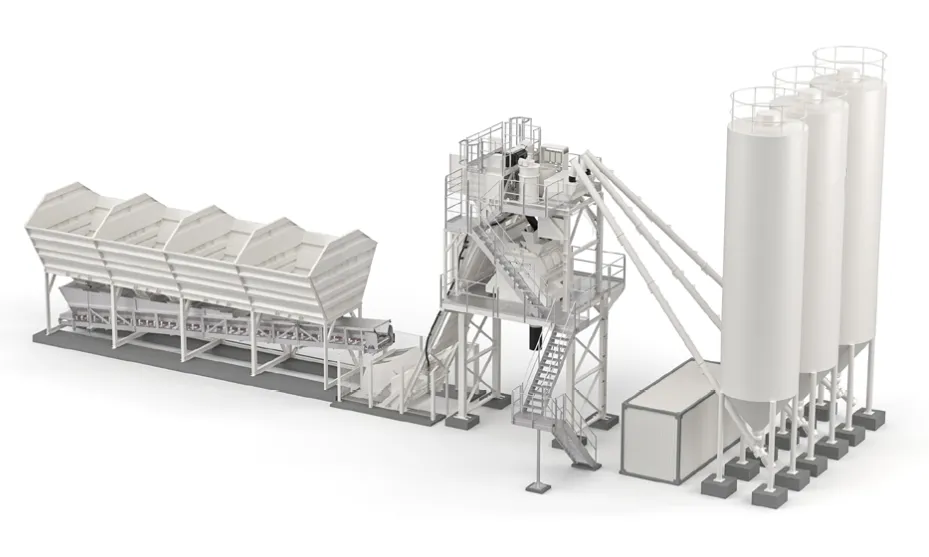

CBS TB ELBA – high-performance concrete mixing plant

Key features

High production output
Generously dimensioned mixing platform for easy accessibility and servicing
Dust extraction system (option)
Partially galvanised (standard)
Adapted for additives and special products (option)
Foundation-free installation on steel frames (option)
Winter cladding for the mixer tower (option)
Fast installation through pre-assembled modules

Technical specifications

Type	Max. concrete output (compacted) [m³/h]	Mixer volume [l]	Active aggregate stockpile [m³]	Max. components	Max. cement types
CBS 180 TB	177	4000	140–312	4–12	6
CBT 200 TB	190	4500	140–312	4–12	6
